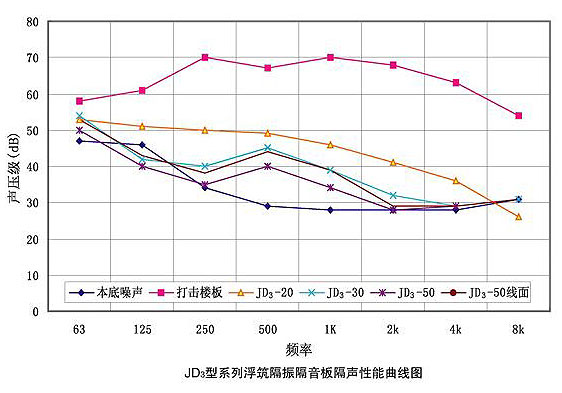

JD3型浮筑隔振隔音板隔声、消音效果很好：A声级能降低30-35dB (A)；C声级降低17-23dB (A)。荷载增加时，隔声效果更佳。详见隔声性能表：
JD3 Floating Vibration-Damping and Sound-Insulation Board performs very good in sound insulation and sound reducing; sound level A 30-35dB(A); Sound Level C 17-23dB(A). The performance has a direct proportion to the load.
| 测试条件 Testing terms |
倍频带中心频率 Hz Octave Band Cenler Frequency Hz |
A声级 sound Level A dB |
C声级 sound Level C dB | |||||||
| 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K | |||
| 打击楼板 Floor Beating |
63 | 68 | 70 | 70 | 71 | 72 | 73 | 71 | 75 | 76 |
| 荷载 250Kg/m2 Load 250Kg/m2 |
53 | 51 | 50 | 49 | 46 | 41 | 36 | 26 | 45 | 59 |
| 隔声量（dB） STC (dB) |
10 | 17 | 20 | 21 | 25 | 31 | 37 | 35 | 30 | 17 |
| 测试条件 Testing terms |
倍频带中心频率 Hz Octave Band Cenler Frequency Hz |
A声级 sound Level A dB |
C声级 sound Level C dB | |||||||
| 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K | |||
| 打击楼板 Floor Beating |
63 | 68 | 70 | 70 | 71 | 72 | 73 | 71 | 75 | 76 |
| 荷载 250Kg/m2 Load 250Kg/m2 |
54.6 | 42.5 | 40.4 | 45 | 39.5 | 32.1 | 29.3 | 31 | 44 | 58 |
| 隔声量（dB） STC (dB) |
8.4 | 45.5 | 29.6 | 25 | 31.5 | 39.9 | 43.7 | 40 | 31 | 18 |
| 测试条件 Testing terms |
倍频带中心频率 Hz Octave Band Cenler Frequency Hz |
A声级 sound Level A dB |
C声级 sound Level C dB | |||||||
| 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K | |||
| 打击楼板 Floor Beating |
63 | 68 | 70 | 70 | 71 | 72 | 73 | 71 | 75 | 76 |
| 荷载 250Kg/m2 Load 250Kg/m2 |
51.8 | 42.3 | 39.4 | 44.2 | 33.8 | 28.7 | 29.2 | 31.8 | 41 | 54 |
| 隔声量（dB） STC (dB) |
11.2 | 25.7 | 30.6 | 25.8 | 37.2 | 43.3 | 43.8 | 39.2 | 34 | 22 |
| 测试条件 Testing terms |
倍频带中心频率 Hz Octave Band Cenler Frequency Hz |
A声级 sound Level A dB |
C声级 sound Level C dB | |||||||
| 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K | |||
| 打击楼板 Floor Beating |
63 | 68 | 70 | 70 | 71 | 72 | 73 | 71 | 75 | 76 |
| 荷载 250Kg/m2 Load 250Kg/m2 |
53.6 | 43.2 | 38.6 | 44.8 | 39.4 | 29.1 | 29.3 | 31.8 | 44 | 56 |
| 隔声量（dB） STC (dB) |
9.4 | 24.8 | 31.4 | 25.2 | 31.6 | 42.9 | 43.7 | 39.2 | 31 | 20 |
| 型号 Model |
诃可载荷P Permitted Load P (Kg/m2) |
压缩变形 F Compression-Deformation F (mm) |
自振频率 fo free-Vibration frequency fo (Hz) |
隔声 Sound Insulation | 隔振效率% Ratio of Vibration-damping % | |
| A声级 Sound Level A (dB) |
C声级 Sound Level C (dB) | |||||
| JD3-20 | 250-5000 | 0.5-2 | 15-22 | 30 | 17 | 88 |
| JD3-30 | 250-12000 | 1-9 | 12-22 | 31 | 18 | 91 |
| JD3-50 | 250-15000 | 1-10 | 10-20 | 34 | 22 | 94 |
| JD3-50(T) 线面(Line Surtace) |
500-25000 (Kg/m) |
1-8 | 10-20 | 31 | 22 | 91 |
阻尼比：0.1-0.18 工作温度：-20℃-80℃
Damping Ratio: 0.1-0.18 Working Temperature: -20℃-80℃
着重说明：JD3-50(T)为线面专用浮筑隔振隔音板，不但具有上列浮筑隔振隔音板的优点，特别适用于墙体线面载荷作为浮筑隔振隔音板。
Points to be illustrated: JD3-50(T) Floating Vibration-Damping and Sound-Insulation Board is specially designed for line surface.
